General:

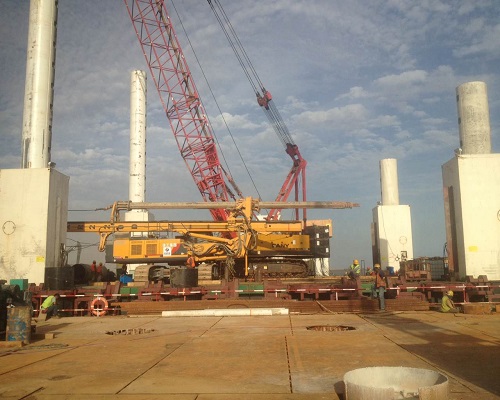

Four-legged, Modular Jack-Up Barge.

Class: DNV GL X100 A5, Pontoon, Self Elevating Unit, Operation according to Operating Manual. X A-MC

Main Dimensions:

Length overall                                                                             36.586m

Breadth                                21.92m

Depth                                        2.896m

Draft design                                  2.0m

Deck Area                               625m²

Variable Load                                 636MT

Max. Water Depth                                                                                    30m

Jacking System:

Jacking Capacity                             3x450MT

Jacking Speed                                                                                    12m/hr

Positioning Winches                                                            70kN, 4nos.

Movable Multi-piling support was equipped.
